Macro Hardness Tester can be used to determine the vickers hardness of steel,non-ferrousmetals, ceramics, treated layers of metal surface & hardness grades of carburized, nitrided & hardened layers of metals. The Macro Hardness Tester are precision hardness testing machine integrated with technology of optics, mechanics & computer hardware. Measurement of hardness using weight Up to 5000g and Measurement L.C. 0.02µm.

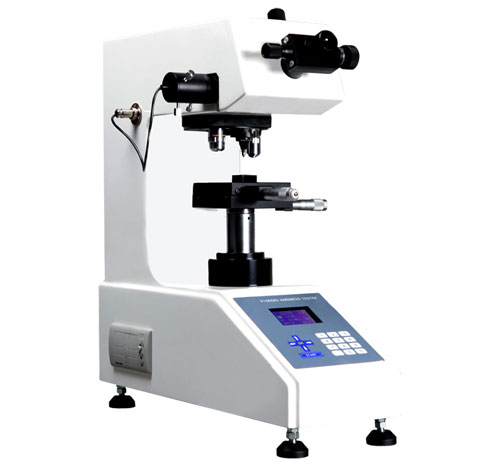

Macro Vickers Hardness Tester RMHT-205 & RMHT-206
FEATURES
Up to 5000g (49N) Testing Force
Loading Speed of < 50µm/sec
Standard Rectangular pyramid diamond indenter (136°)
Min. Measuring Unit 0.01µm
Hardness Value Range from 1HV to 4000HV
Automatic using digital encoder
Digital LCD Screen
100x (for Observation), 400x (for Measurement)
Automatically (Load, dwell and unload the testing force)
Automatic Turret or Manual Turret
LED cold light source
Built-in Printer
